Introducing the

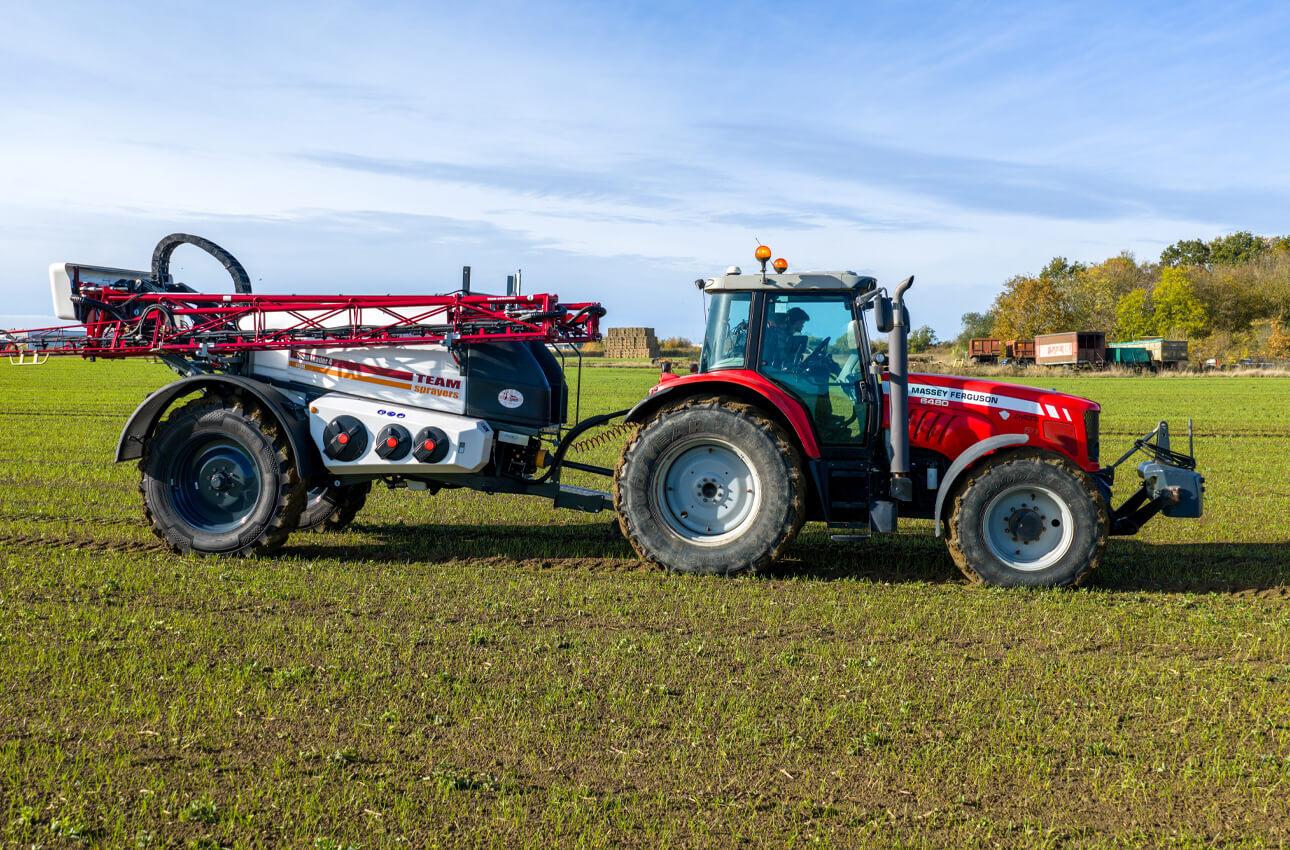

Team Leader 4 Sprayer
The Leader 4 chassis and spray boom have been designed to meet the rigorous demands of any agricultural environment.
A completely new design incorporating a low-folding boom and an all new profiled tank ensures a low centre of gravity, thereby maximising machine stability with boom widths up to 36M and tank up to 5000L.
Designed to offer years of strength and durability.
Features
- Computerised spray rate controller: automatically adjusts spray application rate to forward speed. The Muller system shown also controls boom hydraulics and steering system from either the main screen or joystick
- Hydraulics and spray valves: are mounted at the rear and protected by a moulded cover
- Boom re-circulation: compressed air shut-off
- Work station: controlling primary functions to operate the sprayer and when cleaning or filling
- Chemical induction: 25L stainless steel hopper for safe transfer of liquids and powders via a high pressure venturi system to the main tank and a rotary nozzle for cleaning containers
- Diaphragm pump: high quality Poly’ series withstands any aggressive plant protection chemicals
- Boom construction: all booms are manufactured from steel tubular sections. The three dimensional structure guarantees strength and durability
- All nozzles and spray lines are secured above the base of the boom for protection against accidental damage
- Boom adjustment: all pivot points and fold rams can be adjusted to counteract wear
- Pantograph boom lift system: ensures excellent stability and performance, dampened by a nitrogen accumulator. Boom adjustment height from 500 to 2500mm
- Optional extras include: GPS boom section switching and mapping, stainless steel spray lines, bout/foam marking system, one-side boom fold (outer section only)
Designed and built for British farmers
Specification
Tank Size |
3000L 4000L or 5000L |
Boom |
21M up to 36M (double or triple folding) |
Pump |
PTO or hydraulic driven diaphragm |
Control |
Muller Track Guide 3 control system |
Other main features include |
|
